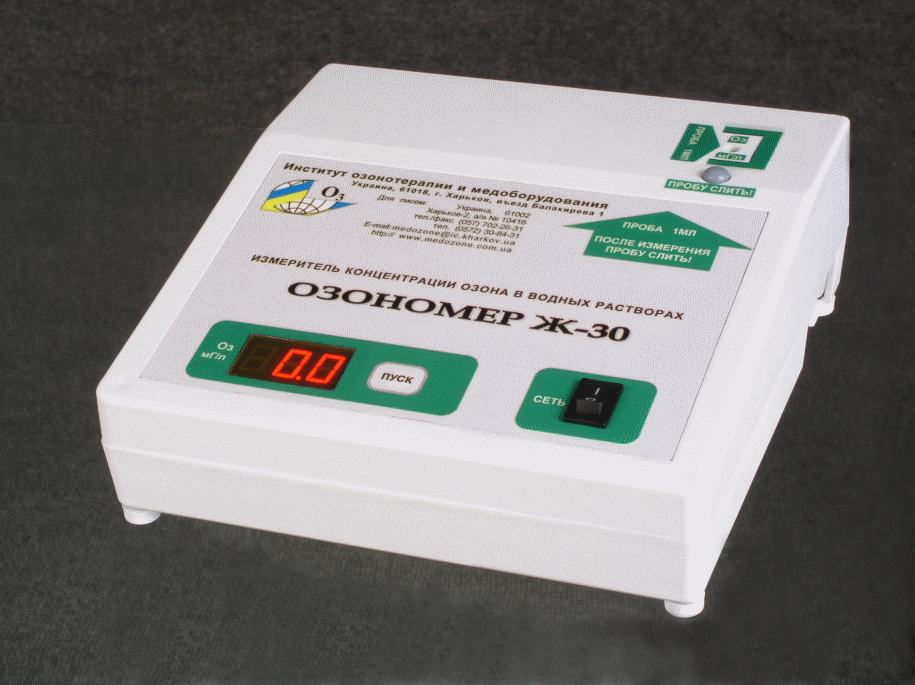

Analyzer "OZONOMER L- 30” is meant for measuring ozone concentration in liquid mixture. "OZONOMER L - 30” allows to control and to determine the mass ozone concentration in liquid mixture, including physiological solution after processing it by ozone devices of different constructions and various manufacturers. This device is of high stability and big operating resource.
The principle of operation of this measuring device is in its photometric ozone measuring through its own absorption stripe for 253,7 nm.
The work of analyzer is based upon measuring absorption of ultra-violet radiation by liquid solutions depending upon the dissolving ozone in it. During it, ultra-violet radiation of a mercury lamp goes to the measuring photodetector (photoelectric detector) through cuvette filled with solution (2 ml) . For this process, the test standard is fulfilled by syringe (2 ml of non-ozoned liquid or physiological solutions ) and it is poured into right-angled quartz cuvette with the size 10 x 10 mm, built in the proper socket of the analyzer. After pushing the button "Standard” and having measured all the indices of the test standard solution, the cuvette is taken off and all its contents is poured away. All the data of the standard are kept in the memory of the device (microprocessor).
For measuring the ozone concentration in the analogous solution after its ozoning is also fulfilled by the syringe 2 ml of the ozoned process. After completing the measuring, the cuvette is taken off and the measured solution is poured out. While making the following measurements of the dissolving ozone concentration, the determination of the standard characteristics of the solution is not made. In case of exchanging the researched solution or using the same solution, but by another consignment or another manufacturer, the procedure of measuring characteristics of the standard solution is produced according to the above-described scheme and is kept in the memory of the device till another pushing of the button "Standard”.
The principle of operation of this measuring device is in its photometric ozone measuring through its own absorption stripe for 253,7 nm.
The work of analyzer is based upon measuring absorption of ultra-violet radiation by liquid solutions depending upon the dissolving ozone in it. During it, ultra-violet radiation of a mercury lamp goes to the measuring photodetector (photoelectric detector) through cuvette filled with solution (2 ml) . For this process, the test standard is fulfilled by syringe (2 ml of non-ozoned liquid or physiological solutions ) and it is poured into right-angled quartz cuvette with the size 10 x 10 mm, built in the proper socket of the analyzer. After pushing the button "Standard” and having measured all the indices of the test standard solution, the cuvette is taken off and all its contents is poured away. All the data of the standard are kept in the memory of the device (microprocessor).
For measuring the ozone concentration in the analogous solution after its ozoning is also fulfilled by the syringe 2 ml of the ozoned process. After completing the measuring, the cuvette is taken off and the measured solution is poured out. While making the following measurements of the dissolving ozone concentration, the determination of the standard characteristics of the solution is not made. In case of exchanging the researched solution or using the same solution, but by another consignment or another manufacturer, the procedure of measuring characteristics of the standard solution is produced according to the above-described scheme and is kept in the memory of the device till another pushing of the button "Standard”.

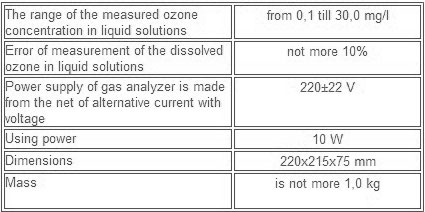

The main technical characteristics:
